Occasionally, during the use of digital printing machines, color shifts may occur after cleaning the printheads. The problem of chromatic aberration may be manifested as color shift, uneven color, lighter color, or color distortion. This situation can lead to substandard quality of the final product, affecting productivity and customer satisfaction. To better understand this problem, we need to analyze it from various aspects such as printhead structure, cleaning process, and ink system, and propose corresponding solutions.
Causes of Color Difference After Printhead Cleaning
1. Clogged printheads or damaged spray holes
The printhead is an essential part of the digital printing machine, which is responsible for precisely spraying ink onto the fabric surface to form an image. The tiny nozzle holes are susceptible to dust, fiber shavings, ink deposits, and clogging.
Suppose the printhead fails to be thoroughly cleaned for a long period or is improperly cleaned. Resulting in clogged or even damaged nozzles. In that case, it may cause the printhead to fail to dispense ink properly, which in turn affects the color performance of the printed image. Cleaning the printhead is too hard to wipe. Or unsuitable cleaning fluid may also cause damage to the printhead, so that after cleaning it shows a different color effect than before.
2. Ink flow system residual problems
The ink system of a digital printing machine usually includes ink bottles, ink tubes, ink cartridges, and printheads. These components may accumulate a certain amount of ink residue or impurities during long-term use.
These residues may be flushed out and mixed into the new ink during the printhead cleaning process, resulting in color changes. In addition, there are chemical differences between different inks. If they are not thoroughly cleaned when switching between colors or changing ink types. They may also form a color mix inside the printhead, resulting in color deviations.
3. Changes in printhead temperature and humidity
The operating temperature and humidity of the printhead can have a significant impact on how well the ink is sprayed. When cleaning the printhead, usually use a higher-temperature cleaning fluid. Or will allow the printhead to be exposed to high ambient humidity. After cleaning the printhead temperature and humidity within a short period. A large change will affect the viscosity and surface tension of the ink. Resulting in a change in the size and shape of the ink particles ejected, which leads to color difference problems. This color difference is especially noticeable when printing is performed immediately after cleaning.
4. Residue and mixing of cleaning fluids
The main function of the cleaning fluid is to unclog the printhead and remove residual ink. When the cleaning fluid itself is not completely drained. It will react chemically or mix physically with the new ink. Thus altering the ink’s physical properties and color performance. In addition, if an incompatible or poor-quality cleaning fluid is used. It may also cause corrosion of the inner wall of the printhead or changes in surface tension, allowing color shifts to occur during the inkjet process.
5. Changes in printing parameters
After the printheads are cleaned, some of the machine’s parameters may change. Including ink jet pressure, printhead height, and color management settings. Especially after manual adjustment of the printhead or a new printhead. The device needs to recalibrate the physical parameters of the printhead and print parameters to ensure the consistency of the output color. If these calibration operations are not performed after cleaning, significant color difference problems may appear when printing.
Solutions and Preventive Measures
1. Regular maintenance and proper printhead cleaning

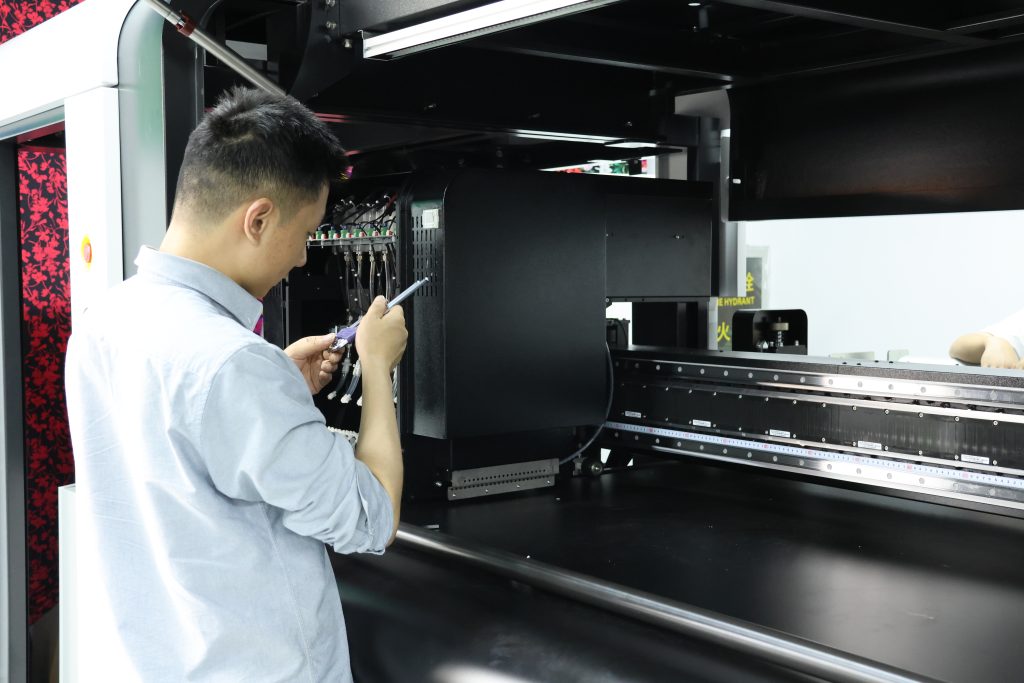

Regular maintenance and cleaning of the printheads is key to maintaining color consistency in printing. It is recommended to use a good quality cleaning fluid that is compatible with the equipment and follow the manufacturer’s instruction steps. Avoid damaging the printheads by using unsuitable cleaning fluids or improper cleaning methods such as excessive forceful wiping. Deep cleaning can be performed after each long downtime or when replacing ink to remove impurities and residual ink that may have accumulated.
2. Use high-quality, matched inks and cleaning fluids
In the production of digital printing, the choice of ink and cleaning fluid is very important. It is recommended to use original or certified inks and cleaning fluids to ensure chemical compatibility between the two. If it is necessary to change the ink type or color, be sure to thoroughly clean the printhead and ink system first to avoid color mixing or chemical reactions resulting in color differences.
3. Printhead condition test and color calibration after cleaning
After each printhead cleaning, it is recommended to conduct a printhead condition test to check whether the ink output from the printhead holes is uniform and free of broken lines. In addition, you can print the color block pattern or grayscale test strip to observe whether the performance of each color ink is normal. After confirming that the nozzle status is correct, then carry out the actual production operation. For the more serious case of color difference. It is recommended that the color management software through the color of the print color calibration to ensure the consistency of the print results.
4. Maintain the stability of the equipment environment
The working environment of the printhead has an important impact on its performance. Try to place the equipment in a stable temperature and humidity environment to avoid fluctuations in environmental conditions caused by changes in ink viscosity, affecting the inkjet effect. After cleaning the printhead, try to keep the equipment standing for a while to allow the printhead to temperature. And humidity to return to normal levels before printing operations.
5. Check the ink flow path and printhead hardware condition
If the problem of color difference still can not be solved after several times of cleaning. You can check whether there is a blockage or air leakage in the ink flow path. In addition, the printhead itself may be aging, wear and tear, or physical damage. Then you need to consider replacing the printhead or asking a professional technician to repair it.
Summarize
In digital printing machines after cleaning the printhead color difference is a common technical problem. It can be prevented and solved. Through a comprehensive analysis of the printhead structure, ink system, and environmental parameters.
We can take appropriate maintenance measures to avoid the occurrence of color differences. Maintaining regular maintenance of the equipment, using the appropriate cleaning fluid and ink, and timely color calibration. And printhead condition testing will help to improve the print quality of the digital printing machine to ensure product color consistency, which in turn improves production efficiency and customer satisfaction.
Understanding the relationship between printhead cleaning and color difference. Taking the appropriate technical means to solve this problem, is essential to improve the overall performance of the digital printing machine.
In the future use of the process, the enterprise can be based on the actual production situation to continuously optimize the cleaning process and color management strategy, to better play the production potential of digital printing equipment.
