Dedicated to Ricoh printhead development more than 10 years.
Eco-friendly process that meets high industry standards
A wide range of printing materials that are available
After-sales service that guarantees the robustness
Various options of fabric
Consultation and support

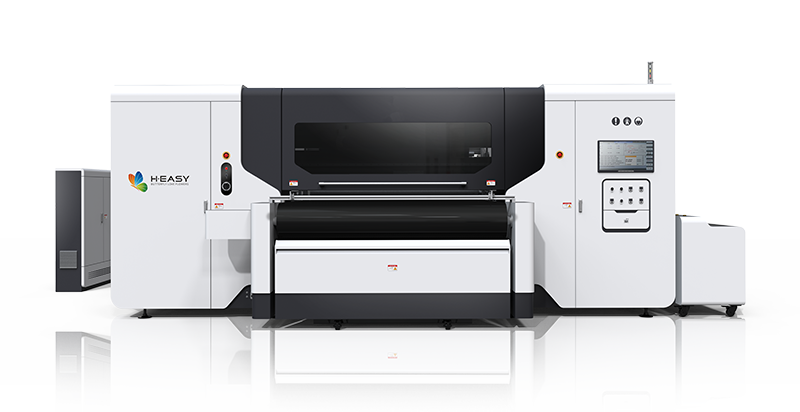

Model: H1808 | Specification | ||
|---|---|---|---|
Print head | 8pcs Ricoh Gen5E and Gen6 print head | ||
Fabric Conveyance Mode | Adhesive belt with cleaning and heating system | ||
Effective Print Width | 1800/2600 mm | ||
Maximum Printing Resolution | 2400 DPI | ||
Speed | Gen6 | 2pass 170 ㎡/h | 3pass 120 ㎡/h | ||
RIP Software | Neostampa / Texprint | ||
Printing Parts Introduction | Auto negative pressure ink supply, auto up & down of carriage, auto print head clean, auto print head capping | ||
Belt System Introduction | Auto dry & take-up system, auto belt cleaning system | ||
Dryer unit | Aluminum foil heater,infrared heater and hot windtunnel type room is optional | ||
Ink Type | Reactive , disperse , pigment ink
(12 colors) | ||
Interface | GBE, Optical fiber | ||
Print Head Height | Height adjustable 1.5~30mm, to adapt
medium of different thickness. | ||
Power Voltage | 380V , 3L+N+G ( with independent
reliable effective earth wire ) | ||
Power Frequency | 50HZ/60HZ ±1HZ | ||
Power Consumption | Printer 10kw , Dyer 16KW (Steam dryer 4KW) | ||
Workshop Condition | Temperature: 20-30℃, Humidity: 50-65% | ||
Measurement
(with Wooden Case) | Printer | 2200*4500/5300/1700 mm ( W*L*H ) | |
Dryer | 2260*4500/5300/1700 mm ( W*L*H ) | ||
Ink Cabinet | 1900*700*1000 mm ( W*L*H ) | ||
Fabric Feeder
(Optional) | 2350*1050*1300 mm ( W*L*H ) | ||
Weight | 4200/4600 kg | ||
The collaborating factory is the holder of the invention patent for Chinese textile coatings (pigments) and inks, with independent intellectual property rights.
The pigment inks have been authentically certified by the Swiss OEKO-TEX organization’s ECO-PASSPORT for environmental compatibility.
Suitable for printing on various textiles including cotton, organic cotton, nylon, polyester, as well as polyester-cotton and nylon-cotton blends.
With outstanding color performance and a unique configuration of vibrant red shades, they offer a broader color gamut.
Their resistance to washing, friction, and sunlight meets or exceeds national standards.A printing solution using the advanced RCT rapid color technology (no pre- or post-treatment required) with leading innovative advantages can be provided.
The process is simple, eliminating the need for steaming and washing, thereby saving energy.The inks exhibit good flow properties, ensuring sustained printing excellence and caring for the printheads.
K | C | M | Y | ||
|---|---|---|---|---|---|
Washing Fastness 60 C (ISO 105-C10) | Discoloration | 4-5 | 4-5 | 4-5 | 4-5 |
Staining | 5 | 5 | 5 | 5 | |
Rubbing Fastness (1SO 105-X12) | Dry Rubbing Fastness | 4-5 | 4-5 | 4-5 | 4-5 |
Wet Rubbing Fastness | 3-4 | 3-4 | 3-4 | 4 | |
Light Fastness (1SO 105B02) | 7-8 | 7-8 | 7-8 | 7-8 |
Technical & Solution department With years of experience in the digital printing industry, excels in providing tailored solutions to clients while fostering strong relationships and ensuring customer satisfaction. Our vast experience, market knowledge, and exceptional communication skills make us a trusted advisor and an invaluable asset in the field.
A talented sales team that provides customized solutions to customers while fostering strong relationships and ensuring customer satisfaction. A professional technical team that is constantly developing and innovating the level of printer technology to create better digital fabric printers. A reliable after-sales team to solve all kinds of after-sales problems for customers, and provide printer installation and various maintenance programs.
